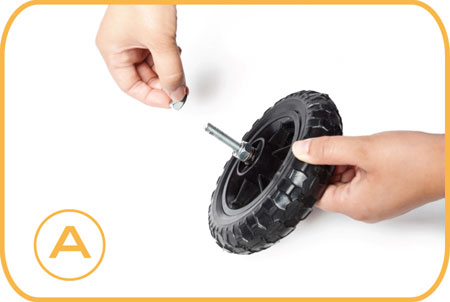

Step A:
Remove nut from wheel bolt.
|
|

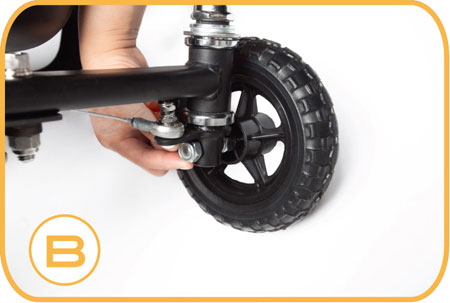

Step B:
Insert wheel into rear frame and attach nut.
|
|

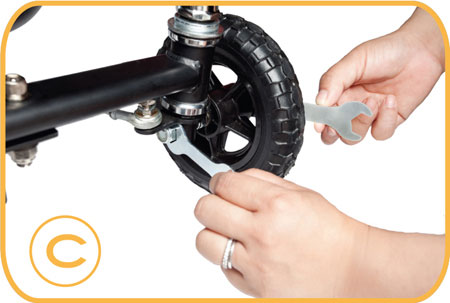

Step C:
Tighten using wrenches.
Repeat on other side.
|
|

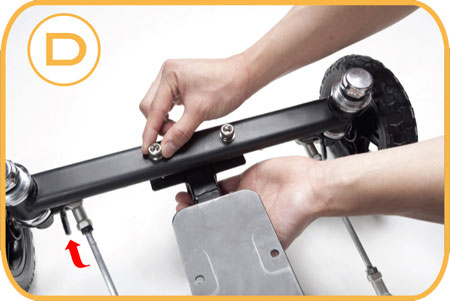

Step D:
For models WITH push bar, tighten bolt only using allen wrench. Do not attach nut.
For models WITHOUT push bar, tighten bolt and nut using wrenches.
|
|

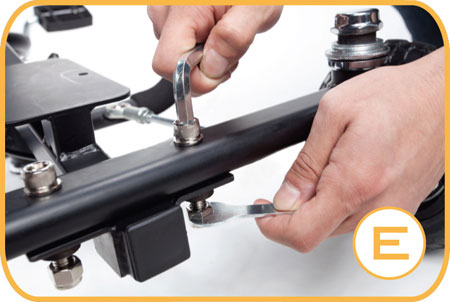

Step E:
Remove nut from wheel bolt.
|
|

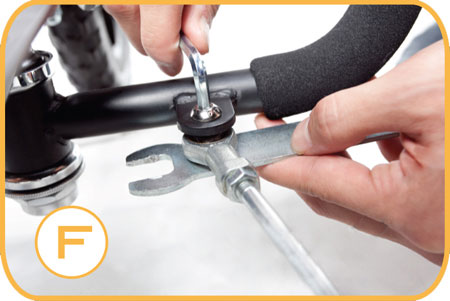

Step F:
Remove screws from linkage steering and align the linkage steering to the steering arms.
Attach screws and nut and tighten.
|
|

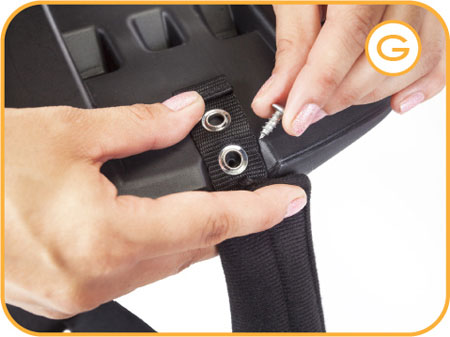

Step G:
(* For seat belt only - If your model does not have a seat belt, skip to Step J)
Align bottom of seat belt to the bottom of seat.
|
|

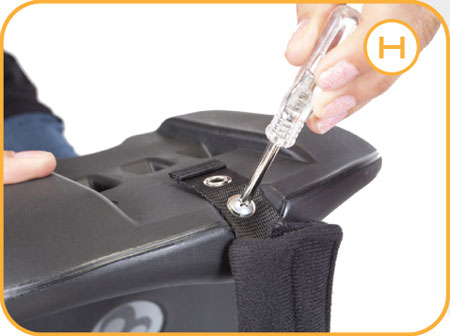

Step H:
(* For seat belt only)
Tighten screw.
|
|

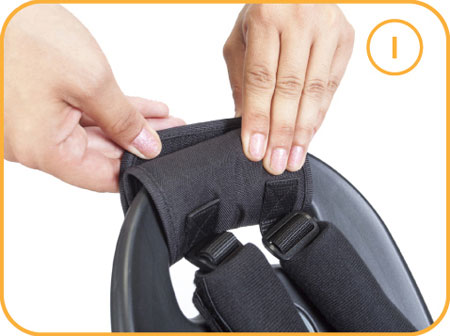

Step I:
(* For seat belt only)
Wrap velcro on top of seat belt around the handle at top of seat.
|
|

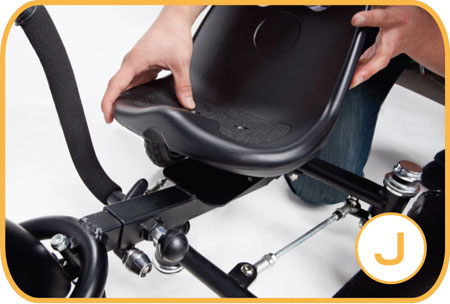

Step J:
Place screws and washer in seat onto frame.
|
|

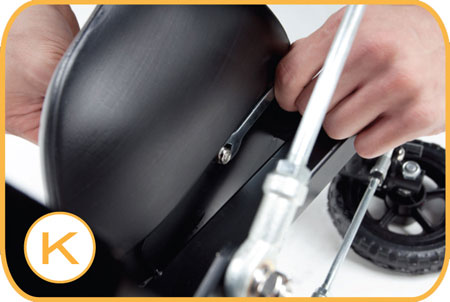

Step K:
Tighten nut onto seat screw.
|
|

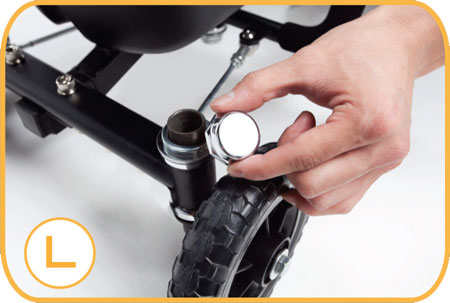

Step L:
Remove cap from rear frame.
|
|

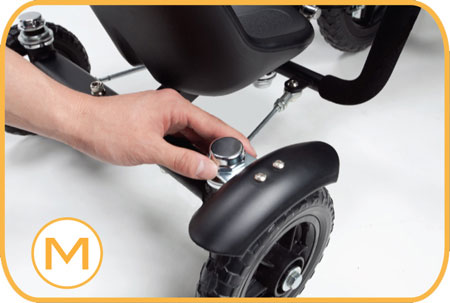

Step M:
Place fender and replace cap.
|
|

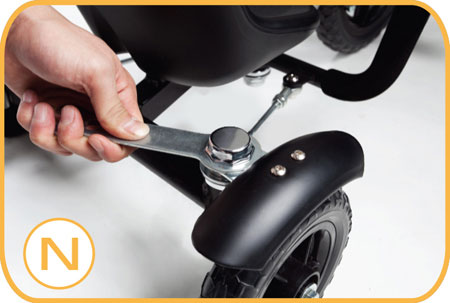

Step N:
Tighten cap and repeat on other side.
|
|

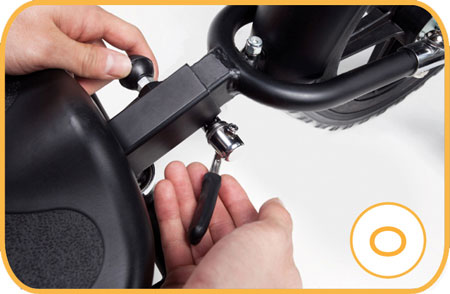

Step O:
Adjust length to fit rider by loosening quick release lever and pulling out the knob and moving the frame.
Tighten lever once adjusted.
|
|

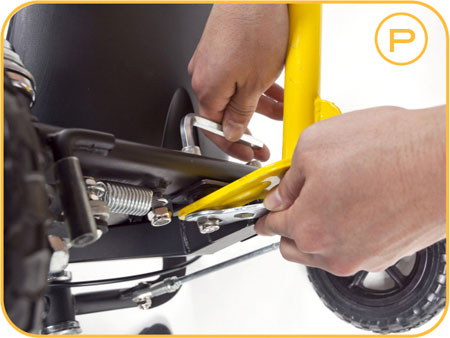

Step P:
(* For push bar only)
Align push bar under rear frame and tighten nut onto bolt.
|
|

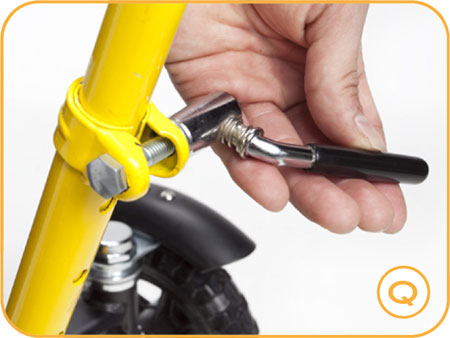

Step Q:
(* For push bar only)
Adjust push bar to desired height.
|
|

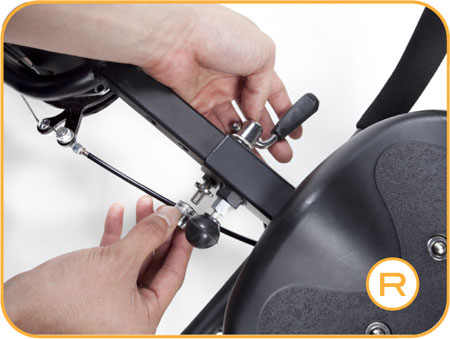

Step R:
(* For foot rest only)
Loosen and pull out quick release lever.
|
|

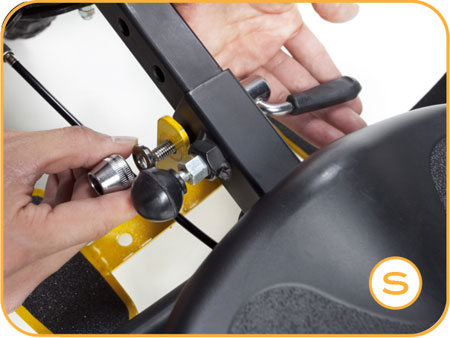

Step S:
(* For foot rest only)
Align foot rest onto frame, attach and tighten quick release lever.
|
